HBIT 雙刃粗搪孔刀–AB type
|
|
搪孔刀柄、粗搪孔刀本體、粗搪孔刀座 Taper Shank, Body and Cutting Insert Holder
整支 SET
MAS403 BT-H • BIT 雙刃粗搪孔刀(AB type)

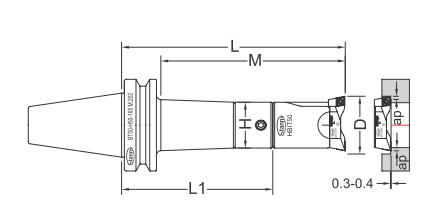

MAS403 BT and H • BIT Adjustable Twin Cutter Boring Head (AB type)
|
訂貨編號 Order No. |
規 格 Model |
範 圍 D |
M |
L |
粗搪孔系統組合 Adjustable Twin Cutter Boring Head |
淨重 |
||||
|
Boring Range |
搪孔刀柄 |
粗搪孔刀本體 |
粗搪孔刀座 |
|||||||
|
ψDMin-ψDMax |
Taper Shank |
Boring Head |
Cutting Insert Holders |
|||||||
|
32291306AB |
BT30-HBIT25-60 |
AB |
29-36 |
60 |
85 |
BT30-H25-35 |
HBIT25 |
SACC2936 |
SBCC2936 |
0.57 |
|
32291307AB |
BT30-HBIT25-75 |
AB |
29-36 |
75 |
105 |
BT30-H25-55 |
0.66 |
|||
|
32351306AB |
BT30-HBIT25-60 |
AB |
35-42 |
60 |
85 |
BT30-H25-35 |
SACC3542 |
SBCC3542 |
0.59 |
|
|
32351307AB |
BT30-HBIT25-75 |
AB |
35-42 |
75 |
105 |
BT30-H25-55 |
0.68 |
|||
|
33361307AB |
BT30-HBIT32-75 |
AB |
36-45 |
75 |
98 |
BT30-H32-35 |
HBIT32 |
SACC3645 |
SBCC3645 |
0.82 |
|
33361309AB |
BT30-HBIT32-93 |
AB |
36-45 |
93 |
118 |
BT30-H32-55 |
0.91 |
|||
|
33441307AB |
BT30-HBIT32-75 |
AB |
44-53 |
75 |
98 |
BT30-H32-35 |
SACC4453 |
SBCC4453 |
0.82 |
|
|
33441309AB |
BT30-HBIT32-93 |
AB |
44-53 |
93 |
118 |
BT30-H32-55 |
0.91 |
|||
|
34451307AB |
BT30-HBIT40-75 |
AB |
45-56 |
75 |
98 |
BT30-H40-35 |
HBIT40 |
SACC4556 |
SBCC4556 |
1.01 |
|
34451309AB |
BT30-HBIT40-93 |
AB |
45-56 |
93 |
118 |
BT30-H40-55 |
1.19 |
|||
|
34551307AB |
BT30-HBIT40-75 |
AB |
55-66 |
75 |
98 |
BT30-H40-35 |
SACC5566 |
SBCC5566 |
1.03 |
|
|
34551309AB |
BT30-HBIT40-93 |
AB |
55-66 |
93 |
118 |
BT30-H40-55 |
1.10 |
|||
|
35561309AB |
BT30-HBIT50-93 |
AB |
56-74 |
93 |
125 |
BT30-H50-45 |
HBIT50 |
SACC5674 |
SBCC5674 |
2.25 |
|
35741309AB |
BT30-HBIT50-93 |
AB |
74-92 |
93 |
125 |
BT30-H50-45 |
SACC7492 |
SBCC7492 |
2.29 |
|
|
32291406AB |
BT40-HBIT25-60 |
AB |
29-36 |
60 |
90 |
BT40-H25-40 |
HBIT25 |
SACC2936 |
SBCC2936 |
1.17 |
|
32291409AB |
BT40-HBIT25-90 |
AB |
29-36 |
90 |
122 |
BT40-H25-72 |
1.29 |
|||
|
32291412AB |
BT40-HBIT25-123 |
AB |
29-36 |
123 |
150 |
BT40-H25-100 |
1.64 |
|||
|
32351406AB |
BT40-HBIT25-60 |
AB |
35-42 |
60 |
90 |
BT40-H25-40 |
SACC3542 |
SBCC3542 |
1.19 |
|
|
32351409AB |
BT40-HBIT25-90 |
AB |
35-42 |
90 |
122 |
BT40-H25-72 |
1.31 |
|||
|
32351412AB |
BT40-HBIT25-123 |
AB |
35-42 |
123 |
150 |
BT40-H25-100 |
1.66 |
|||
|
33361407AB |
BT40-HBIT32-75 |
AB |
36-45 |
75 |
103 |
BT40-H32-40 |
HBIT32 |
SACC3645 |
SBCC3645 |
1.37 |
