產品敘述:

搪孔刀柄、粗搪孔刀本體、80˚粗搪孔刀座 Taper Shank, Body and 80˚ Cutting Insert Holder

整支 SET

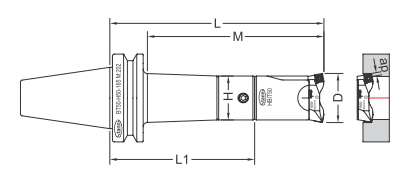

MAS403 BT-H•BIT 80˚雙刃粗搪孔刀 (MM type)

MAS403 BT and H•BIT Adjustable Twin Cutter Boring Head (MM type)

訂貨編號 Order No.	規格 Model		範圍 D	M	L	粗搪孔系統組合 Adjustable Twin Cutter Boring Head				淨重N.W.
			Boring Range			搪孔刀柄	粗搪孔刀本體	80˚粗搪孔刀座
			ψDMin-ψDMax			Taper Shank	Boring Head	80˚ Cutting Insert Holders
32291306MM	BT30-HBIT25-60	MM	29-36	60	85	BT30-H25-35	HBIT25‍	EMSC2936	EMSC2936	0.57
32291307MM	BT30-HBIT25-75	MM	29-36	75	105	BT30-H25-55		EMSC2936	EMSC2936	0.66
32351306MM	BT30-HBIT25-60	MM	35-42	60	85	BT30-H25-35		EMSC3542	EMSC3542	0.57
32351307MM	BT30-HBIT25-75	MM	35-42	75	105	BT30-H25-55		EMSC3542	EMSC3542	0.66
33361307MM	BT30-HBIT32-75	MM	36-45	75	98	BT30-H32-35	HBIT32	EMSC3645	EMSC3645	0.80
33361309MM	BT30-HBIT32-93	MM	36-45	93	118	BT30-H32-55		EMSC3645	EMSC3645	0.89
33441307MM	BT30-HBIT32-75	MM	44-53	75	98	BT30-H32-35		EMSC4453	EMSC4453	0.82
33441309MM	BT30-HBIT32-93	MM	44-53	93	118	BT30-H32-55		EMSC4453	EMSC4453	0.91
34451307MM	BT30-HBIT40-75	MM	45-56	75	98	BT30-H40-35	HBIT40	EMSC4556	EMSC4556	0.99
34451309MM	BT30-HBIT40-93	MM	45-56	93	118	BT30-H40-55		EMSC4556	EMSC4556	1.17
34551307MM	BT30-HBIT40-75	MM	55-66	75	98	BT30-H40-35		EMSC5566	EMSC5566	1.01
34551309MM	BT30-HBIT40-93	MM	55-66	93	118	BT30-H40-55		EMSC5566	EMSC5566	1.19
35561309MM	BT30-HBIT50-93	MM	56-74	93	125	BT30-H50-45	HBIT50	EMSC5674	EMSC5674	2.23
35741309MM	BT30-HBIT50-93	MM	74-92	93	125	BT30-H50-45	HBIT50	EMSC7492	EMSC7492	2.27

32291406MM	BT40-HBIT25-60	MM	29-36	60	90	BT40-H25-40	HBIT25	EMSC2936	EMSC2936	1.17
32291409MM	BT40-HBIT25-90	MM	29-36	90	122	BT40-H25-72				1.29
32291412MM	BT40-HBIT25-123	MM	29-36	123	150	BT40-H25-100				1.64
32351406MM	BT40-HBIT25-60	MM	35-42	60	90	BT40-H25-40		EMSC3542	EMSC3542	1.17
32351409MM	BT40-HBIT25-90	MM	35-42	90	122	BT40-H25-72				1.29
32351412MM	BT40-HBIT25-123	MM	35-42	123	150	BT40-H25-100				1.64
33361407MM	BT40-HBIT32-75	MM	36-45	75	103	BT40-H32-40	HBIT32	EMSC3645	EMSC3645	1.35 </
