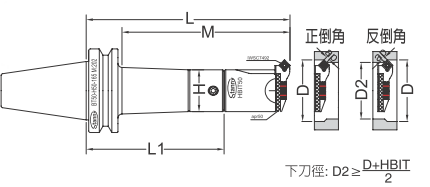

HBIT 粗搪孔刀-45˚正反倒角 (AW type)
|
|
搪孔刀柄、粗搪孔刀本體、45˚正反倒角搪孔刀座、反搪孔壓板 Taper Shank, Body, 45˚ Chamfer Cutting Insert Holder and Apron
整支 SET
MAS403 BT-H•BIT粗搪孔刀-45˚正反倒角(AW type)
MAS403 BT and H•BIT Adjustable 45˚ Chamfer Cutter Boring Head (AW type)
|
訂貨編號 Order No. |
規 格 Model |
範 圍 D |
M |
L |
粗搪孔系統組合 Adjustable Twin Cutter Boring Head |
淨重N.W. |
||||
|
Boring Range |
搪孔刀柄 |
粗搪孔刀本體 |
45˚正反倒角刀座 |
反搪孔壓板 |
||||||
|
ψDMin-ψDMax |
Taper Shank |
Boring Head |
45˚ Chamfer Cutting Insert Holder |
Apron |
||||||
|
32291306AW |
BT30-HBIT25-60 |
AW |
29-36 |
60 |
85 |
BT30-H25-35 |
HBIT25 |
IWSC2936 |
apr25 |
0.57 |
|
32291307AW |
BT30-HBIT25-75 |
AW |
29-36 |
75 |
105 |
BT30-H25-55 |
0.66 |
|||
|
32351306AW |
BT30-HBIT25-60 |
AW |
35-42 |
60 |
85 |
BT30-H25-35 |
IWSC3542 |
0.57 |
||
|
32351307AW |
BT30-HBIT25-75 |
AW |
35-42 |
75 |
105 |
BT30-H25-55 |
0.66 |
|||
|
33361307AW |
BT30-HBIT32-75 |
AW |
36-45 |
75 |
98 |
BT30-H32-35 |
HBIT32 |
IWSC3645 |
apr32 |
0.80 |
|
33361309AW |
BT30-HBIT32-93 |
AW |
36-45 |
93 |
118 |
BT30-H32-55 |
0.89 |
|||
|
33441307AW |
BT30-HBIT32-75 |
AW |
44-53 |
75 |
98 |
BT30-H32-35 |
IWSC4453 |
0.81 |
||
|
33441309AW |
BT30-HBIT32-93 |
AW |
44-53 |
93 |
118 |
BT30-H32-55 |
0.90 |
|||
|
34451307AW |
BT30-HBIT40-75 |
AW |
45-56 |
75 |
98 |
BT30-H40-35 |
HBIT40 |
IWSC4556 |
apr40 |
0.98 |
|
34451309AW |
BT30-HBIT40-93 |
AW |
45-56 |
93 |
118 |
BT30-H40-55 |
1.16 |
|||
|
34551307AW |
BT30-HBIT40-75 |
AW |
55-66 |
75 |
98 |
BT30-H40-35 |
IWSC5566 |
0.99 |
||
|
34551309AW |
BT30-HBIT40-93 |
AW |
55-66 |
93 |
118 |
BT30-H40-55 |
1.17 |
|||
|
35561309AW |
BT30-HBIT50-93 |
AW |
56-74 |
93 |
125 |
BT30-H50-45 |
HBIT50 |
IWSC5674 |
apr50 |
2.21 |
|
35741309AW |
BT30-HBIT50-93 |
AW |
74-92 |
93 |
125 |
BT30-H50-45 |
IWSC7492 |
2.22 |
||
|
32291406AW |
BT40-HBIT25-60 |
AW |
29-36 |
60 |
90 |
BT40-H25-40 |
HBIT25 |
IWSC2936 |
apr25 |
1.17 |
|
32291409AW |
BT40-HBIT25-90 |
AW |
29-36 |
90 |
122 |
BT40-H25-72 |
1.29 |
|||
|
32291412AW |
BT40-HBIT25-123 |
AW |
29-36 |
123 |
150 |
BT40-H25-100 |
1.64 |
|||
|
32351406AW |
BT40-HBIT25-60 |
AW |
35-42 |
60 |
90 |
BT40-H25-40 |
IWSC3542 |
1.17 |
||
|
32351409AW |
BT40-HBIT25-90 |
AW |
35-42 |
90 |
122 |
BT40-H25-72 |
1.29 |
|||
|
32351412AW |
BT40-HBIT25-123 |
AW |
35-42 |
123 |
150 |
BT40-H25-100 |
1.64 |
|||
|
33361407AW |
BT40-HBIT32-75 |
AW |
36-45 |
75 |
103 |
BT40-H32-40 |
HBIT32 |
IWSC3645 |
apr32 |
1.35 |
|
33361410AW |
|
|||||||||
