HBOR 極細微調精搪孔刀

產品敘述:

精搪孔刀本體、精搪孔刀座 Body and Cutting Insert Holder

精搪孔刀本體、精搪孔反搪刀座 Body and Reverse Cutting Insert Holder

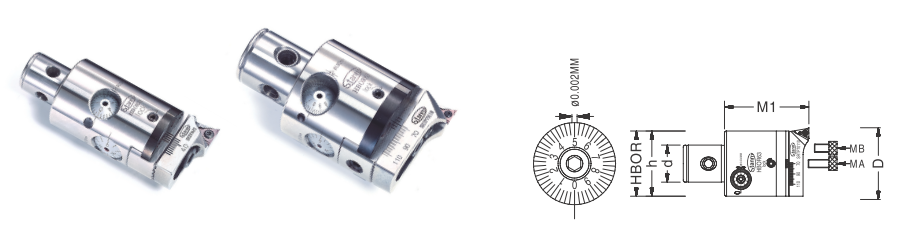

H • BOR 極細微調精搪孔刀

H • BOR Micro-Finishing Cutter Fine Boring Head

訂貨編號    Order No.

規 格

         Model

範    圍    D

M1

h

精搪孔系統組合 Micro-Finishing Cutter Fine   Boring and Cutting System

淨重

N.W.

Boring Range

精搪孔刀本體

MA

MB

精搪孔刀座

ψDMin-ψDMax

Boring Head

Bolt

Bolt

Cutting Insert Holder

52290000

HBOR25

M

29-38

50

25

HBOR25

M5×12

SRTP2938

0.16

53360000

HBOR32

M

36-52

63

32

HBOR32

M6×12

SRTP3652

0.37

54440000

HBOR40

M

44-68

63

40

HBOR40

M6×12

SRTP4468

0.53

55570000

HBOR50

BM

57-90

80

50

HBOR50

BM8×20

M8×14

SRTP5790

1.05

56700000

HBOR63

BM

70-110

80

63

HBOR63

BM8×20

M8×14

SRTP70110

1.65

56710000

HBOR63

BM

110-150

80

63

HBOR63

BM8×20

M8×14

SRTP110150

1.76

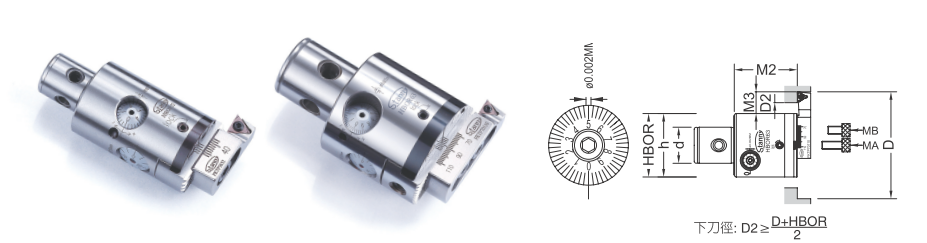

H • BOR 極細微調精搪孔反搪孔刀

H • BOR Micro-Finishing Cutter for Reverse Fine Boring System

訂貨編號    Order No.

規  格

         Model

範   圍   D

M3

M2

h

精搪孔反搪系統組合 Micro-Finishing Cutter for   Reverse Fine Boring and Cutting System

淨 重N.W.

Boring Range

精搪孔刀本體

MA

MB

精搪孔反搪刀座

ψDMin-ψDMax

Boring Head

Bolt

Bolt

Reverse Cutting Insert Holder

52290000K

HBOR25

MK

29-38

1-5

50

25

HBOR25

M5×12

FKTP2938

0.16

53360000K

HBOR32

MK

36-52

1-9

63

32

HBOR32

M6×12

FKTP3652

0.37

54440000K

HBOR40

MK

44-68

1-13

63

40

HBOR40

M6×12

FKTP4468

0.53

55570000K

HBOR50

BMK

57-90

2-19

80

50

HBOR50

BM8×20

M8×14

FKTP5790

1.02

56700000K

HBOR63

BMK

70-110

2-22

80

63

HBOR63

BM8×20

M8×14

FKTP70110

1.62

56710000K

HBOR63

BMK

110-150

22-42

80

63

HBOR63

BM8×20

M8×14

FKTP110150

1.73
