HBOR 極細微調精搪孔刀－反搪
|
|
搪孔刀柄、精搪孔刀本體、精搪孔反搪刀座 Taper Shank, Body and Reverse Cutting Insert Holder
整支 SET

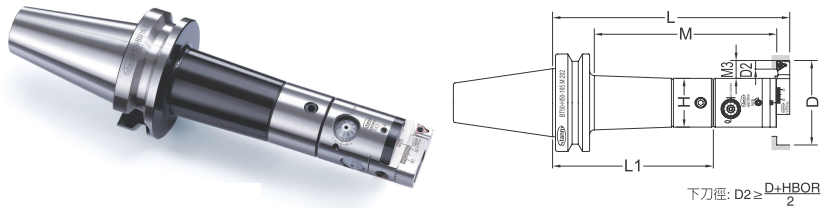

MAS403 BT-H • BOR 極細微調精搪孔刀－反搪
MAS403 BT and H • BOR Micro-Finishing Cutter for Reverse Fine Boring System
|
訂貨編號 Order No. |
規 格 Model |
範 圍 D |
M3 |
M |
L |
反搪精搪孔系統組合 Micro-Finishing Cutter for Reverse Fine Boring and Cutting System |
淨重N.W. |
||||
|
Boring Range |
搪孔刀柄 |
精搪孔刀本體 |
連接器 |
反搪精搪孔刀座 |
|||||||
|
ψDMin-ψDMax |
Taper Shank |
Boring Head |
Connector |
Reverse Cutting Insert Holder |
|||||||
|
52291304K |
BT30-HBOR25-49 |
MK |
29-38 |
1-5 |
49 |
60 |
BT30-H25-35 |
HBOR25 |
M5 |
FKTP2938 |
0.56 |
|
52291306K |
BT30-HBOR25-64 |
MK |
29-38 |
1-5 |
64 |
75 |
BT30-H25-55 |
0.65 |
|||
|
53361306K |
BT30-HBOR32-62 |
MK |
36-52 |
1-9 |
62 |
73 |
BT30-H32-35 |
HBOR32 |
M6 |
FKTP3652 |
0.82 |
|
53361308K |
BT30-HBOR32-80 |
MK |
36-52 |
1-9 |
80 |
91 |
BT30-H32-55 |
0.91 |
|||
|
54441306K |
BT30-HBOR40-62 |
MK |
44-68 |
1-13 |
62 |
73 |
BT30-H40-35 |
HBOR40 |
FKTP4468 |
0.98 |
|
|
54441308K |
BT30-HBOR40-80 |
MK |
44-68 |
1-13 |
80 |
91 |
BT30-H40-55 |
1.16 |
|||
|
55571307K |
BT30-HBOR50-73 |
BMK |
57-90 |
2-19 |
73 |
88 |
BT30-H50-45 |
HBOR50 |
BM8 |
FKTP5790 |
1.59 |
|
56701307K |
BT30-HBOR63-73 |
BMK |
70-110 |
2-22 |
73 |
88 |
BT30-H63-65 |
HBOR63 |
FKTP70110 |
2.53 |
|
|
52291404K |
BT40-HBOR25-49 |
MK |
29-38 |
1-5 |
49 |
60 |
BT40-H25-40 |
HBOR25 |
M5 |
FKTP2938 |
1.16 |
|
52291407K |
BT40-HBOR25-79 |
MK |
29-38 |
1-5 |
79 |
90 |
BT40-H25-72 |
1.28 |
|||
|
52291411K |
BT40-HBOR25-112 |
MK |
29-38 |
1-5 |
112 |
123 |
BT40-H25-100 |
1.63 |
|||
|
53361406K |
BT40-HBOR32-62 |
MK |
36-52 |
1-9 |
62 |
73 |
BT40-H32-40 |
HBOR32 |
M6 |
FKTP3652 |
1.37 |
|
53361408K |
BT40-HBOR32-89 |
MK |
36-52 |
1-9 |
89 |
100 |
BT40-H32-72 |
1.57 |
|||
|
53361413K |
BT40-HBOR32-137 |
MK |
36-52 |
1-9 |
137 |
148 |
BT40-H32-120 |
1.92 |
|||
|
54441406K |
BT40-HBOR40-60 |
MK |
44-68 |
1-13 |
60 |
71 |
BT40-H40-40 |
HBOR40 |
FKTP4468 |
1.58 |
|
|
54441408K |
BT40-HBOR40-89 |
MK |
44-68 |
1-13 |
89 |
100 |
BT40-H40-72 |
1.84 |
|||
|
54441414K |
BT40-HBOR40-149 |
MK |
44-68 |
1-13 |
149 |
160 |
BT40-H40-130 |
2.48 |
|||
|
55571408K |
BT40-HBOR50-82 |
BMK |
57-90 |
2-19 |
82 |
97 |
BT40-H50-50 |
HBOR50 |
BM8 |
FKTP5790 |
2.17 |
|
55571416K |
BT40-HBOR50-162 |
BMK |
57-90 |
2-19 |
162 |
177 |
BT40-H50-130 |
3.22 |
|||
|
56701408K |
BT40-HBOR63-82 |
BMK |
70-110 |
2-22 |
82 |
97 |
BT40-H63-55 |
HBOR63 |
FKTP70110 |
2.86 |
|
|
56711408K |
BT40-HBOR63-82 |
BMK |
110-150 |
22-42 |
82 |
97 |
FKTP110150 |
2.97 |
|||
|
52291509K |
BT50-HBOR25-91 |
MK |
29-38 |
1-5 |
91 |
102 |
BT50-H25-115 |
HBOR25 |
M5 |
FKTP2938 |
4.31 |
|
52291511K |
BT50-HBOR25-116 |
MK |
29-38 |
1-5 |
116 |
127 |
BT50-H25-140 |
4.46 |
|||
|
52291514K |
BT50-HBOR25-141 |
MK |
29-38 |
1-5 |
141 |
152 |
BT50-H25-165 |
4.56 |
|||
|
53361512K |
BT50-HBOR32-122 |
MK |
36-52 |
1-9 |
122 |
133 |
BT50-H32-135 |
HBOR32 |
M6 |
FKTP3652 |
4.92 |
|
53361515K |
BT50-HBOR32-152 |
MK |
36-52 |
1-9 |
152 |
163 |
BT50-H32-165 |
5.17 |
|||
|
53361518K |
BT50-HBOR32-187 |
MK |
36-52 |
1-9 |
187 |
198 |
BT50-H32-200 |
5.37 |
|||
|
54441512K |
BT50-HBOR40-122 |
MK |
44-68 |
1-13 |
122 |
133 |
BT50-H40-135 |
HBOR40 |
FKTP4468 |
5.43 |
|
|
54441517K |
BT50-HBOR40-172 |
MK |
44-68 |
1-13 |
172 |
183 |
BT50-H40-185 |
5.98 |
|||
|
54441521K |
BT50-HBOR40-212 |
MK |
44-68 |
1-13 |
212 |
223 |
BT50-H40-225 |
6.43 |
|||
|
54441525K |
BT50-HBOR40-252 |
MK |
44-68 |
1-13 |
252 |
263 |
BT50-H40-265 |
6.83 |
|||
|
55571508K |
BT50-HBOR50-82 |
BMK |
57-90 |
2-19 |
82 |
97 |
BT50-H50-65 |
HBOR50 |
BM8 |
FKTP5790 |
4.82 |
|
55571518K |
BT50-HBOR50-182 |
BMK |
57-90 |
2-19 |
182 |
197 |
BT50-H50-165 |
6.37 |
|||
|
55571523K |
BT50-HBOR50-232 |
BMK |
57-90 |
2-19 |
232 |
247 |
BT50-H50-215 |
7.32 |
|||
|
55571528K |
BT50-HBOR50-282 |
BMK |
57-90 |
2-19 |
282 |
297 |
BT50-H50-265 |
8.22 |
|||
|
56701510K |
BT50-HBOR63-102 |
BMK |
70-110 |
2-22 |
102 |
117 |
BT50-H63-85 |
HBOR63 |
FKTP70110 |
5.92 |
|
|
56701518K |
BT50-HBOR63-182 |
BMK |
70-110 |
2-22 |
182 |
197 |
BT50-H63-165 |
7.82 |
|||
|
56701523K |
BT50-HBOR63-232 |
BMK |
70-110 |
2-22 |
232 |
247 |
BT50-H63-215 |
9.37 |
|||
|
56701528K |
BT50-HBOR63-282 |
BMK |
70-110 |
2-22 |
282 |
297 |
BT50-H63-265 |
10.32 |
|||
|
56701533K |
BT50-HBOR63-332 |
BMK |
70-110 |
2-22 |
332 |
347 |
BT50-H63-315 |
13.57 |
|||
|
56711510K |
BT50-HBOR63-102 |
BMK |
110-150 |
22-42 |
102 |
117 |
BT50-H63-85 |
FKTP110150 |
6.03 |
||
|
56711518K |
BT50-HBOR63-182 |
BMK |
110-150 |
22-42 |
182 |
197 |
BT50-H63-165 |
7.93 |
|||
|
56711523K |
BT50-HBOR63-232 |
BMK |
110-150 |
22-42 |
232 |
247 |
BT50-H63-215 |
9.48 |
|||
|
56711528K |
BT50-HBOR63-282 |
BMK |
110-150 |
22-42 |
282 |
297 |
BT50-H63-265 |
10.43 |
|||
|
56711533K |
BT50-HBOR63-332 |
BMK |
110-150 |
22-42 |
332 |
347 |
BT50-H63-315 |
13.68 |
|||
