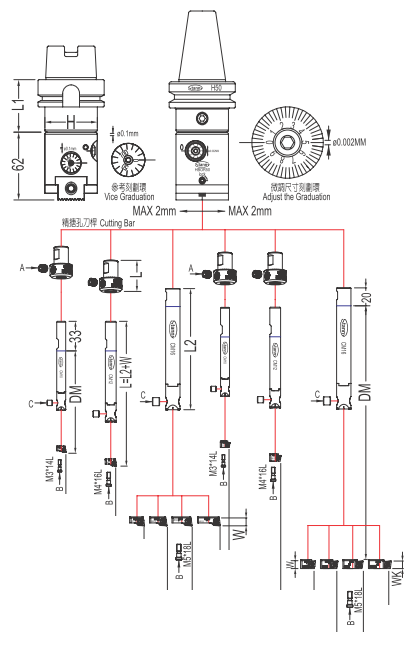

HBOR50P 極細微調精搪孔系統
|
|
整組SET G2.5 12000rpm ø11～ø32
|
訂貨編號Order No. |
規 格 Model |
範 圍 D |
組合系統-主軸柄規格 Taper Shank |
L1 |
淨 重 N.W. |
|
|
Boring Range |
||||||
|
ψDMin-ψDMax |
||||||
|
55801304 |
BT30-HBOR50P |
11-32 |
H50 |
MAS403 BT30-H50-45 |
45 |
2.28 |
|
55801405 |
BT40-HBOR50P |
11-32 |
H50 |
MAS403 BT40-H50-50 |
50 |
2.86 |
|
55801506 |
BT50-HBOR50P |
11-32 |
H50 |
MAS403 BT50-H50-65 |
65 |
5.51 |
|
55802305 |
SK30-HBOR50P |
11-32 |
H50 |
DIN69871A ISO30-H50-55 |
55 |
2.41 |
|
55802405 |
SK40-HBOR50P |
11-32 |
H50 |
DIN69871A ISO40-H50-50 |
50 |
2.83 |
|
55802505 |
SK50-HBOR50P |
11-32 |
H50 |
DIN69871A ISO50-H50-50 |
50 |
5.06 |
|
55804605 |
HSK63-HOBR50P |
11-32 |
H50 |
DIN69893A HSK63-H50-50 |
50 |
2.57 |
套筒 Sleeve
|
訂貨編號Order No. |
規 格 Model |
內徑 Inner Diameter |
L |
A螺絲 A-Bolt |
鎢鋼柄 Carbide Shank |
淨 重N.W. |
|
|
50081610 |
BC1610 |
Φ10 |
34 |
M8 |
CM10 |
0.06 |
|
|
50081612 |
BC1612 |
Φ12 |
CM12 |
0.05 |
鎢鋼柄 Carbide Shank
|
訂貨編號Order No. |
規 格 Model |
外徑 Outer |
L2 |
C導程螺帽 C-Lead Bolt |
B螺絲 B-Bolt |
淨 重N.W. |
|
|
50071009 |
CM10 |
Φ10 |
99 |
Φ6*6L |
M3-CM10 |
0.10 |
|
|
50071211 |
CM12 |
Φ12 |
112 |
Φ7*7L |
M4-CM12 |
0.16 |
|
|
50071613 |
CM16 |
Φ16 |
135 |
Φ9*9L |
M5-CM16 |
0.35 |
MR (正搪) 和MK (反搪) 搪孔刀座
MR and MK(Reverse) Cutting Insert Holder
|
訂貨編號Order No. |
規 格 Model |
範 圍 D |
刀座高度 |
深度 |
L |
鎢鋼柄 Carbide Shank |
套筒Sleeeve |
刀片&螺絲 Insert&Bolt |
淨 重N.W. |
|||
|
Boring Range |
||||||||||||
|
ψDMin-ψDMax |
W |
WK |
DM |
|||||||||
|
50061114 |
MR11 |
11-14.5 |
6 |
72 |
105 |
CM10 |
BC1610 |
1 |
0.002 |
|||
|
50061317 |
MR13 |
13-17.5 |
7 |
86 |
119 |
CM12 |
BC1612 |
2 |
0.003 |
|||
|
50061723 |
MR17 |
17-23.5 |
9 |
124 |
144 |
CM16 |
3 |
0.005 |
||||
|
50062026 |
MR20 |
20-26.5 |
0.006 |
|||||||||
|
50062329 |
MR23 |
23-29.5 |
0.008 |
|||||||||
|
50062632 |
MR26 |
26-32.5 |
0.009 |
|||||||||
|
50051114 |
MK11 |
11-14.5 |
7 |
6 |
59 |
106 |
CM10 |
BC1610 |
4 |
0.002 |
||
|
50051317 |
MK13 |
13-17.5 |
8 |
7 |
72 |
120 |
CM12 |
BC1612 |
5 |
0.003 |
||
|
50051723 |
MK17 |
17-23.5 |
10 |
9 |
115 |
145 |
CM16 |
6 |
0.005 |
|||
|
50052026 |
MK20 |
20-26.5 |
0.007 |
|||||||||
|
50052329 |
MK23 |
23-29.5 |
0.009 |
|||||||||
|
50052632 |
MK26 |
26-32.5 |
0.011 |
|||||||||
