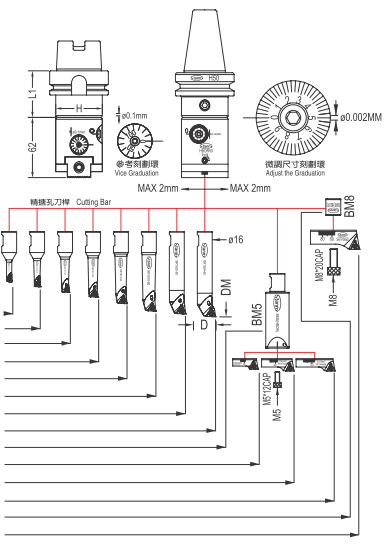

HBOR50 極細微調精搪孔系統
|
|
整組SET ø6～ø90
|
訂貨編號 Order No. |
規格 Model |
範 圍 D Boring Range ψDMin-ψDMax |
組合系統-主軸柄規格 Taper Shank |
L1 |
淨重 N.W. |
|
|
55901309 |
BT30-HBOR50 |
6-90 |
H50 |
MAS403 BT30-H50-45 |
45 |
6.7 |
|
55901410 |
BT40-HBOR50 |
6-90 |
H50 |
MAS403 BT40-H50-50 |
50 |
7.3 |
|
55901510 |
BT50-HBOR50 |
6-90 |
H50 |
MAS403 BT50-H50-65 |
65 |
9.9 |
|
55902309 |
SK30-HBOR50 |
6-90 |
H50 |
DIN69871A ISO30-H50-55 |
55 |
6.8 |
|
55902410 |
SK40-HBOR50 |
6-90 |
H50 |
DIN69871A ISO40-H50-50 |
50 |
7.3 |
|
55902510 |
SK50-HBOR50 |
6-90 |
H50 |
DIN69871A ISO50-H50-50 |
50 |
9.5 |
|
55904610 |
HSK63-HOBR50 |
6-90 |
H50 |
DIN69893A HSK63-H50-50 |
50 |
7.0 |
|
訂貨編號 Order No |
精搪孔刀桿 Cutting Bar |
範 圍 D Boring Range ψDMin-ψDMax |
深度 DM |
刀片 Insert |
螺絲 Bolt |
板手 Wrench |
淨重 N.W. |
|
50160621 |
BR1606-21 |
6-9 |
21 |
WBGT0601..L |
SB-1STR-M2 |
T6 |
0.04 |
|
50160828 |
BR1608-28 |
8-11 |
28 |
TBGT0601..L |
0.04 |
||
|
50161035 |
BR1610-35 |
10-13 |
35 |
0.05 |
|||
|
50161242 |
BR1612-42 |
12-15 |
42 |
TPGH0902..L |
SB-2TR-M2.5 |
T8 |
0.06 |
|
50161450 |
BR1614-50 |
14-17 |
50 |
0.07 |
|||
|
50161660 |
BR1616-60 |
16-20 |
60 |
0.09 |
|||
|
50162065 |
BR1620-65 |
20-24 |
65 |
TPGH1103..L |
SB-3TR-M3 |
0.11 |
|
|
50162468 |
BR1624-68 |
24-28 |
68 |
0.12 |
|||
|
50162505 |
BM5 |
60 + SRTP2938 or SRTP3652 or SRTP4468 |
M5×12CAP |
|
0.25 |
||
|
50252938 |
SRTP2938 |
29-38 |
+10 |
TPGH0902..L |
SB-2TR-M2.5 |
T8 |
0.01 |
|
50323652 |
SRTP3652 |
36-52 |
+12 |
0.02 |
|||
|
50404468 |
SRTP4468 |
44-68 |
+12 |
0.03 |
|||
|
50501608 |
BM8 |
+SRTP5790 |
M8×20CAP |
|
0.03 |
||
|
50505790 |
SRTP5790 |
57-90 |
+20 |
TPGH1103..L |
SB-3TR-M3 |
T8 |
0.10 |
