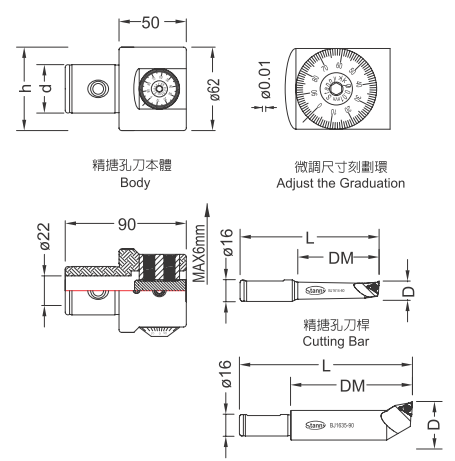

HNBJ16 小徑精搪孔刀
|
|
精搪孔刀本體 Body
精搪孔刀桿 Cutting Bar
H • NBJ16 小徑精搪孔刀—精搪孔刀本體
Body for H • NBJ16 Boring System
|
訂貨編號 Order No. |
規 格 Model |
h |
d |
行程Front |
淨重N.W. |
|
16300050 |
HNBJ16 |
63 |
36 |
6 |
1.20 |
H • NBJ16 小徑精搪孔刀—精搪孔刀桿
Cutting Bar for H • NBJ16 Boring System
|
訂貨編號Order No. |
規 格 Model |
範 圍 D Boring Range ψDmin-ψDmax |
深 度 DM |
L |
系統System |
刀 片 Insert |
螺 絲 Bolt |
板手Wrench |
淨重 N.W. |
|
16010624 |
BJ1606-24 |
6-9 |
24 |
73 |
HNBJ16 |
WBGT0601..L |
SB-1STR-M2 |
T6 |
0.08 |
|
16010832 |
BJ1608-32 |
8-11 |
32 |
80 |
TBGT0601..L |
0.08 |
|||
|
16011040 |
BJ1610-40 |
10-13 |
40 |
87 |
0.08 |
||||
|
16011253 |
BJ1612-53 |
12-15 |
53 |
98 |
TPGH0902..L |
SB-2TR-M2.5 |
T8 |
0.10 |
|
|
16011460 |
BJ1614-60 |
14-17 |
60 |
103 |
0.10 |
||||
|
16011668 |
BJ1616-68 |
16-21 |
68 |
110 |
0.12 |
||||
|
16012083 |
BJ1620-83 |
20-26 |
83 |
125 |
TPGH1103..L |
SB-3TR-M3 |
0.20 |
||
|
16012590 |
BJ1625-90 |
25-31 |
90 |
128 |
0.30 |
||||
|
16013090 |
BJ1630-90 |
30-36 |
90 |
128 |
0.32 |
||||
|
16013590 |
BJ1635-90 |
35-41 |
90 |
128 |
0.32 |
||||
|
16014090 |
BJ1640-90 |
40-46 |
90 |
128 |
0.38 |
||||
|
16014590 |
BJ1645-90 |
45-51 |
90 |
128 |
0.38 |
