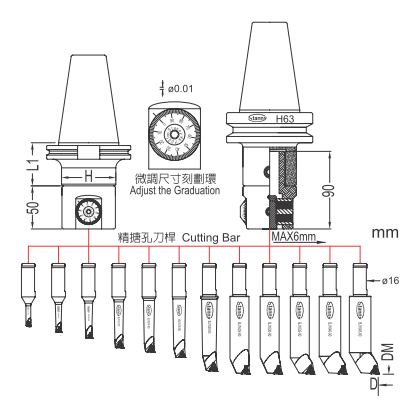

HNBJ16 小徑精搪孔系統
|
|
整組 SET ø6～ø51
|
訂貨編號 Order No. |
規格 Model |
範 圍 D Boring Range ψDMin-ψDMax |
組合系統-主軸柄規格 Taper Shank |
L1 |
淨重 N.W |
|
|
16910410 |
NT40-HNBJ16 |
6-51 |
H63 |
DIN2080 ISO40-H63-55 |
55 |
9.3 |
|
16910510 |
NT50-HNBJ16 |
6-51 |
H63 |
DIN2080 ISO50-H63-65 |
65 |
11.2 |
|
16911410 |
BT40-HNBJ16 |
6-51 |
H63 |
MAS403 BT40-H63-55 |
55 |
9.1 |
|
16911510 |
BT50-HNBJ16 |
6-51 |
H63 |
MAS403 BT50-H63-65 |
65 |
11.7 |
|
16911512 |
BT50-HNBJ16 |
6-51 |
H63 |
MAS403 BT50-H63-85 |
85 |
12.2 |
|
16912410 |
SK40-HNBJ16 |
6-51 |
H63 |
DIN69871A ISO40-H63-60 |
60 |
9.1 |
|
16912510 |
SK50-HNBJ16 |
6-51 |
H63 |
DIN69871A ISO50-H63-65 |
65 |
10.9 |
|
16914610 |
HSK63-HNBJ16 |
6-51 |
H63 |
DIN69893A HSK63-H63-67 |
67 |
9.0 |
|
訂貨編號 Order No. |
搪孔刀桿 Cutting Bar |
範 圍 D Boring range ψDMin-ψDMax |
深度 DM |
刀片 Insert |
螺絲 Bolt |
板手 Wrench |
淨重 N.W. |
|
16010624 |
BJ1606-24 |
6-9 |
24 |
WBGT0601..L |
SB-1STR-M2 |
T6 |
0.08 |
|
16010832 |
BJ1608-32 |
8-11 |
32 |
TBGT0601..L |
0.08 |
||
|
16011040 |
BJ1610-40 |
10-13 |
40 |
0.08 |
|||
|
16011253 |
BJ1612-53 |
12-15 |
53 |
TPGH0902..L |
SB-2TR-M2.5 |
T8 |
0.10 |
|
16011460 |
BJ1614-60 |
14-17 |
60 |
0.10 |
|||
|
16011668 |
BJ1616-68 |
16-21 |
68 |
0.12 |
|||
|
16012083 |
BJ1620-83 |
20-26 |
83 |
TPGH1103..L |
SB-3TR-M3 |
0.20 |
|
|
16012590 |
BJ1625-90 |
25-31 |
90 |
0.30 |
|||
|
16013090 |
BJ1630-90 |
30-36 |
90 |
0.32 |
|||
|
16013590 |
BJ1635-90 |
35-41 |
90 |
0.32 |
|||
|
16014090 |
BJ1640-90 |
40-46 |
90 |
0.38 |
|||
|
16014590 |
BJ1645-90 |
45-51 |
90 |
0.38 |
