BBIT72 大孔徑雙刃粗搪孔刀組－AB type
|
|
搪孔刀柄、接盤、變徑滑座、大孔徑粗搪孔刀本體、粗搪孔刀座
Taper Shank, Adapter, Plate, Large Diameter Body and Cutting Insert Holder
整支 SET

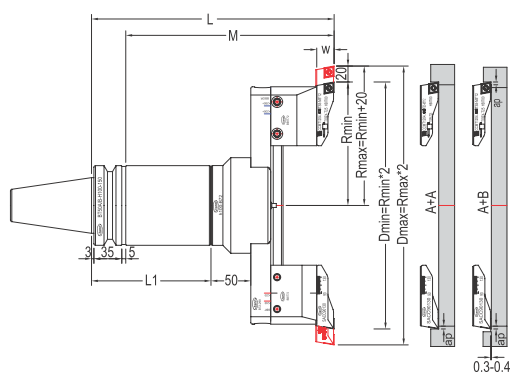

MAS403 BT 和 B • BIT72 大孔徑雙刃粗搪孔刀(AB type)
MAS403 BT and B • BIT72 Large Diameter Adjustable Twin Cutter Roughing and Semi-Finishing Boring System
|
訂貨編號 Order No. |
規 格 Model |
範 圍 D |
M |
L |
大孔徑粗搪孔系統組合 Large Diameter Adjustable Twin Cutter Boring Head |
淨重 N.W. |
|||||
|
Boring Range |
搪孔刀柄 |
接 盤 |
變徑滑座 |
大孔徑粗搪刀本體 |
粗搪孔刀座 |
||||||
|
ψDMin-ψDMax |
Taper Shank |
Adapter |
Plate |
Boring Head |
Cutting Insert Holder |
||||||
|
83101520AB |
BT50-BBIT72-202 |
AB |
160-220 |
202 |
245 |
BT50-H100-100 |
h100-B72 |
B72-148 |
BBIT72 |
SACC90130 SBCC90130 |
16.13 |
|
83201520AB |
BT50-BBIT72-202 |
AB |
210-270 |
B72-198 |
16.98 |
||||||
|
83301520AB |
BT50-BBIT72-202 |
AB |
260-320 |
B72-248 |
17.78 |
||||||
|
83401520AB |
BT50-BBIT72-202 |
AB |
310-370 |
B72-298 |
18.58 |
||||||
|
83501520AB |
BT50-BBIT72-202 |
AB |
360-420 |
B72-348 |
19.38 |
||||||
|
83601520AB |
BT50-BBIT72-202 |
AB |
410-470 |
B72-398 |
20.18 |
||||||
|
83111520AB |
BT50-BBIT72-202 |
AB |
200-260 |
B72-148 |
SACC130170 SBCC130170 |
16.25 |
|||||
|
83211520AB |
BT50-BBIT72-202 |
AB |
250-310 |
B72-198 |
17.10 |
||||||
|
83311520AB |
BT50-BBIT72-202 |
AB |
300-360 |
B72-248 |
17.90 |
||||||
|
83411520AB |
BT50-BBIT72-202 |
AB |
350-410 |
B72-298 |
18.70 |
||||||
|
83511520AB |
BT50-BBIT72-202 |
AB |
400-460 |
B72-348 |
19.50 |
||||||
|
83611520AB |
BT50-BBIT72-202 |
AB |
450-510 |
B72-398 |
20.30 |
||||||
|
83101525AB |
BT50-BBIT72-252 |
AB |
160-220 |
252 |
295 |
BT50-H100-150 |
B72-148 |
SACC90130 SBCC90130 |
18.78 |
||
|
83201525AB |
BT50-BBIT72-252 |
AB |
210-270 |
B72-198 |
19.63 |
||||||
|
83301525AB |
BT50-BBIT72-252 |
AB |
260-320 |
B72-248 |
20.43 |
||||||
|
83401525AB |
BT50-BBIT72-252 |
AB |
310-370 |
B72-298 |
21.23 |
||||||
|
83501525AB |
BT50-BBIT72-252 |
AB |
360-420 |
B72-348 |
22.03 |
||||||
|
83601525AB |
BT50-BBIT72-252 |
AB |
410-470 |
B72-398 |
22.83 |
||||||
|
83111525AB |
BT50-BBIT72-252 |
AB |
200-260 |
B72-148 |
SACC130170 SBCC130170 |
18.90 |
|||||
|
83211525AB |
BT50-BBIT72-252 |
AB |
250-310 |
B72-198 |
19.75 |
||||||
|
83311525AB |
BT50-BBIT72-252 |
AB |
300-360 |
B72-248 |
20.55 |
||||||
|
83411525AB |
BT50-BBIT72-252 |
AB |
350-410 |
B72-298 |
21.35 |
||||||
|
83511525AB |
BT50-BBIT72-252 |
AB |
400-460 |
B72-348 |
22.15 |
||||||
|
83611525AB |
BT50-BBIT72-252 |
AB |
450-510 |
B72-398 |
22.95 |
||||||
|
83101530AB |
BT50-BBIT72-302 |
AB |
160-220 |
302 |
345 |
BT50-H100-200 |
B72-148 |
SACC90130 SBCC90130 |
21.73 |
||
|
83201530AB |
BT50-BBIT72-302 |
AB |
210-270 |
B72-198 |
22.58 |
||||||
|
83301530AB |
BT50-BBIT72-302 |
AB |
260-320 |
B72-248 |
23.38 |
||||||
|
83401530AB |
BT50-BBIT72-302 |
AB |
310-370 |
B72-298 |
24.18 |
||||||
|
83501530AB |
BT50-BBIT72-302 |
AB |
360-420 |
B72-348 |
24.98 |
||||||
|
83601530AB |
BT50-BBIT72-302 |
AB |
410-470 |
B72-398 |
25.78 |
||||||
|
83111530AB |
BT50-BBIT72-302 |
AB |
200-260 |
B72-148 |
SACC130170 SBCC130170 |
21.85 |
|||||
|
83211530AB |
BT50-BBIT72-302 |
AB |
250-310 |
B72-198 |
22.70 |
||||||
|
83311530AB |
BT50-BBIT72-302 |
AB |
300-360 |
B72-248 |
23.50 |
||||||
|
83411530AB |
BT50-BBIT72-302 |
AB |
350-410 |
B72-298 |
24.30 |
||||||
|
83511530AB |
BT50-BBIT72-302 |
AB |
400-460 |
B72-348 |
25.10 |
||||||
|
83611530AB |
BT50-BBIT72-302 |
AB |
450-510 |
B72-398 |
25.90 |
||||||
|
83101535AB |
BT50-BBIT72-352 |
AB |
160-220 |
352 |
395 |
BT50-H100-250 |
B72-148 |
SACC90130 SBCC90130 |
24.68 |
||
|
83201535AB |
BT50-BBIT72-352 |
AB |
210-270 |
B72-198 |
25.53 |
||||||
|
83301535AB |
BT50-BBIT72-352 |
AB |
260-320 |
B72-248 |
26.33 |
||||||
|
83401535AB |
BT50-BBIT72-352 |
AB |
310-370 |
B72-298 |
27.13 |
||||||
|
83501535AB |
BT50-BBIT72-352 |
AB |
360-420 |
B72-348 |
27.93 |
||||||
|
83601535AB |
BT50-BBIT72-352 |
AB |
410-470 |
B72-398 |
28.73 |
||||||
|
83111535AB |
BT50-BBIT72-352 |
AB |
200-260 |
B72-148 |
SACC130170 SBCC130170 |
24.80 |
|||||
|
83211535AB |
BT50-BBIT72-352 |
AB |
250-310 |
B72-198 |
25.65 |
||||||
|
83311535AB |
BT50-BBIT72-352 |
AB |
300-360 |
B72-248 |
26.45 |
||||||
|
83411535AB |
BT50-BBIT72-352 |
AB |
350-410 |
B72-298 |
27.25 |
||||||
|
83511535AB |
BT50-BBIT72-352 |
AB |
400-460 |
B72-348 |
28.05 |
||||||
|
83611535AB |
BT50-BBIT72-352 |
AB |
450-510 |
B72-398 |
28.85 |
||||||
