BBOR72 大孔徑微調精搪孔刀組合系統
|
|
搪孔刀柄、接盤、變徑滑座、大孔徑精搪孔刀本體、平衡座、精搪孔刀座
Taper Shank, Adapter, Plate, Large Diameter Body, Balance Holder
and Cutting Insert Holder
整支 SET

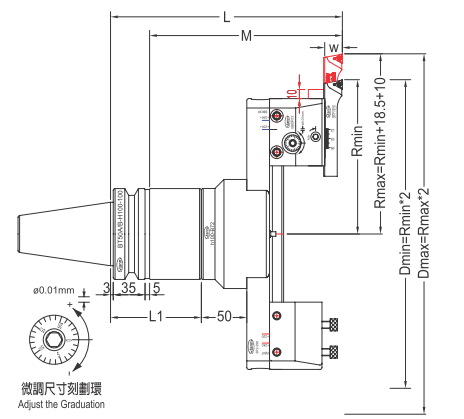

MAS403 BT 和 B•BOR72 大孔徑微調精搪孔刀
MAS403 BT and B•BOR72 Large Diameter Finishing Cutter Fine Boring System
|
訂貨編號 Order No. |
規 格 Model |
範 圍 D |
M |
L |
大孔徑精搪孔系統組合Large Diameter Finishing Cutter Fine Boring System |
淨重N.W. |
|||||
|
Boring Range |
搪孔刀柄 |
接 盤 |
變徑滑座 |
大孔徑精搪孔刀本體 |
精搪孔刀座 |
||||||
|
ψDMin-ψDMax |
Taper Shank |
Adapter |
Plate |
Boring Head |
Cutting Insert Holder |
||||||
|
85101520 |
BT50-BBOR72-202 |
M |
150-227 |
202 |
245 |
BT50-H100-100 |
h100-B72 |
B72-148 |
BBOR72 |
SRTP70110 |
16.24 |
|
85201520 |
BT50-BBOR72-202 |
M |
200-277 |
B72-198 |
17.09 |
||||||
|
85301520 |
BT50-BBOR72-202 |
M |
250-327 |
B72-248 |
17.89 |
||||||
|
85401520 |
BT50-BBOR72-202 |
M |
300-377 |
B72-298 |
18.69 |
||||||
|
85501520 |
BT50-BBOR72-202 |
M |
350-427 |
B72-348 |
19.49 |
||||||
|
85601520 |
BT50-BBOR72-202 |
M |
400-477 |
B72-398 |
20.29 |
||||||
|
85111520 |
BT50-BBOR72-202 |
M |
190-267 |
B72-148 |
SRTP110150 |
16.35 |
|||||
|
85211520 |
BT50-BBOR72-202 |
M |
240-317 |
B72-198 |
17.20 |
||||||
|
85311520 |
BT50-BBOR72-202 |
M |
290-367 |
B72-248 |
18.00 |
||||||
|
85411520 |
BT50-BBOR72-202 |
M |
340-417 |
B72-298 |
18.80 |
||||||
|
85511520 |
BT50-BBOR72-202 |
M |
390-467 |
B72-348 |
19.60 |
||||||
|
85611520 |
BT50-BBOR72-202 |
M |
440-517 |
B72-398 |
20.40 |
||||||
|
85101525 |
BT50-BBOR72-252 |
M |
150-227 |
252 |
295 |
BT50-H100-150 |
B72-148 |
SRTP70110 |
18.89 |
||
|
85201525 |
BT50-BBOR72-252 |
M |
200-277 |
B72-198 |
19.74 |
||||||
|
85301525 |
BT50-BBOR72-252 |
M |
250-327 |
B72-248 |
20.54 |
||||||
|
85401525 |
BT50-BBOR72-252 |
M |
300-377 |
B72-298 |
21.34 |
||||||
|
85501525 |
BT50-BBOR72-252 |
M |
350-427 |
B72-348 |
22.14 |
||||||
|
85601525 |
BT50-BBOR72-252 |
M |
400-477 |
B72-398 |
22.94 |
||||||
|
85111525 |
BT50-BBOR72-252 |
M |
190-267 |
B72-148 |
SRTP110150 |
19.00 |
|||||
|
85211525 |
BT50-BBOR72-252 |
M |
240-317 |
B72-198 |
19.85 |
||||||
|
85311525 |
BT50-BBOR72-252 |
M |
290-367 |
B72-248 |
20.65 |
||||||
|
85411525 |
BT50-BBOR72-252 |
M |
340-417 |
B72-298 |
21.45 |
||||||
|
85511525 |
BT50-BBOR72-252 |
M |
390-467 |
B72-348 |
22.25 |
||||||
|
85611525 |
BT50-BBOR72-252 |
M |
440-517 |
B72-398 |
23.05 |
||||||
|
85101530 |
BT50-BBOR72-302 |
M |
150-227 |
302 |
345 |
BT50-H100-200 |
B72-148 |
SRTP70110 |
21.84 |
||
|
85201530 |
BT50-BBOR72-302 |
M |
200-277 |
B72-198 |
22.69 |
||||||
|
85301530 |
BT50-BBOR72-302 |
M |
250-327 |
B72-248 |
23.49 |
||||||
|
85401530 |
BT50-BBOR72-302 |
M |
300-377 |
B72-298 |
24.29 |
||||||
|
85501530 |
BT50-BBOR72-302 |
M |
350-427 |
B72-348 |
25.09 |
||||||
|
85601530 |
BT50-BBOR72-302 |
M |
400-477 |
B72-398 |
25.89 |
||||||
|
85111530 |
BT50-BBOR72-302 |
M |
190-267 |
B72-148 |
SRTP110150 |
21.95 |
|||||
|
85211530 |
BT50-BBOR72-302 |
M |
240-317 |
B72-198 |
22.80 |
||||||
|
85311530 |
BT50-BBOR72-302 |
M |
290-367 |
B72-248 |
23.60 |
||||||
|
85411530 |
BT50-BBOR72-302 |
M |
340-417 |
B72-298 |
24.40 |
||||||
|
85511530 |
BT50-BBOR72-302 |
M |
390-467 |
B72-348 |
25.20 |
||||||
|
85611530 |
BT50-BBOR72-302 |
M |
440-517 |
B72-398 |
26.00 |
||||||
|
85101535 |
BT50-BBOR72-352 |
M |
150-227 |
352 |
395 |
BT50-H100-250 |
B72-148 |
SRTP70110 |
24.79 |
||
|
85201535 |
BT50-BBOR72-352 |
M |
200-277 |
B72-198 |
25.64 |
||||||
|
85301535 |
BT50-BBOR72-352 |
M |
250-327 |
B72-248 |
26.44 |
||||||
|
85401535 |
BT50-BBOR72-352 |
M |
300-377 |
B72-298 |
27.24 |
||||||
|
85501535 |
BT50-BBOR72-352 |
M |
350-427 |
B72-348 |
28.04 |
||||||
|
85601535 |
BT50-BBOR72-352 |
M |
400-477 |
B72-398 |
28.84 |
||||||
|
85111535 |
BT50-BBOR72-352 |
M |
190-267 |
B72-148 |
SRTP110150 |
24.90 |
|||||
|
85211535 |
BT50-BBOR72-352 |
M |
240-317 |
B72-198 |
25.75 |
||||||
|
85311535 |
BT50-BBOR72-352 |
M |
290-367 |
B72-248 |
26.55 |
||||||
|
85411535 |
BT50-BBOR72-352 |
M |
340-417 |
B72-298 |
27.35 |
||||||
|
85511535 |
BT50-BBOR72-352 |
M |
390-467 |
B72-348 |
28.15 |
||||||
|
85611535 |
BT50-BBOR72-352 |
M |
440-517 |
B72-398 |
28.95 |
||||||
