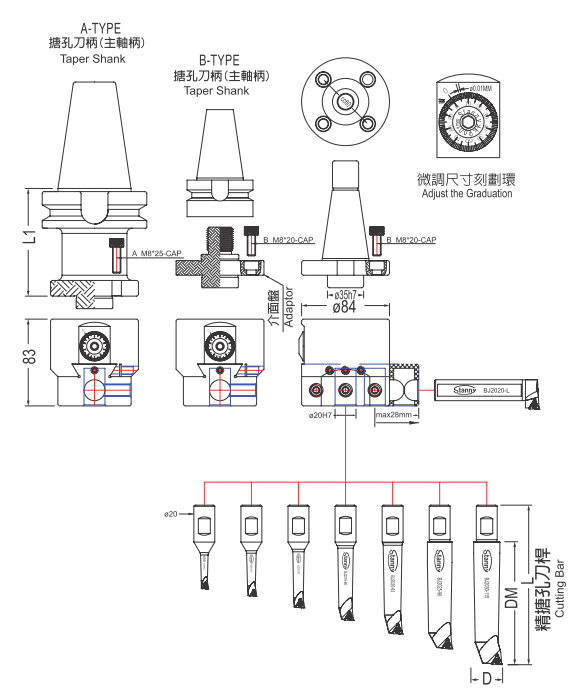

NBH2084微調精搪孔系統—精搪孔刀柄
Taper Shank for NBH2084 Boring System
|
訂貨編號
Order No.
|
規 格
Model
|
Type
|
淨重
N.W.
|
|
20808801
|
R8
|
|
1
|
|
20800301
|
NT30
|
inch or mm
|
0.8
|
|
20800401
|
NT40
|
inch or mm
|
1.2
|
|
20800501
|
NT50
|
inch or mm
|
3.6
|
|
20801410
|
BT40
|
MAS403
|
1.85
|
|
20801510
|
BT50
|
MAS403 A or B
|
4.5
|
|
20802410
|
ISO40
|
DIN69871A
|
1.7
|
|
20802510
|
ISO50
|
DIN69871A
|
4
|
|
20806410
|
MT4
|
A or B ( inch or mm )
|
1.2
|
|
20806510
|
MT5
|
A or B ( inch or mm )
|
2.1
|
NBH2084微調精搪孔系統—精搪孔刀本體
Body for NBH2084 Boring System
|
訂貨編號
Order No.
|
規 格
Model
|
刀 徑
Cutting Bar
|
板 手
Wrench
|
淨重
N.W.
|
|
20840000
|
NBH2084
|
ø 20
|
○4 ○6
|
3
|
NBH2084微調精搪孔系統—精搪孔刀桿
Cutting Bar for NBH2084 Boring System
|
訂貨編號
Order No.
|
規 格
Model
|
範圍D
Boring Range
øDMin-øDMax
|
深度
DM
|
L
|
系統
System
|
刀 片
Insert
|
螺 絲
Bolt
|
板 手
Wrench
|
淨重
N.W.
|
|
20010832
|
BJ2008-32
|
8-11
|
32
|
80
|
NBH2084
|
TBGT0601..L
|
SB-1STR-M2
|
T6
|
0.12
|
|
20011040
|
BJ2010-40
|
10-13
|
40
|
87
|
0.12
|
|
20011253
|
BJ2012-53
|
12-17
|
53
|
98
|
TPGTH0902..L
|
SB-2TR-M2.5
|
T8
|
0.12
|
|
20011668
|
BJ2016-68
|
16-21
|
68
|
110
|
0.16
|
|
20012083
|
BJ2020-83
|
20-125
|
83
|
123
|
TPGH1103..L
|
SB-3TR-M3
|
0.22
|
|
20012596
|
BJ2025-96
|
25-130
|
96
|
137
|
0.24
|
|
20013011
|
BJ2030-115
|
30-135
|
115
|
152
|
0.38
|
|
20012020
|
BJ2020-L
|
120-280
|
84+BT L1
|
100
|
0.46
|
NBH2084 微調精搪孔系統—精搪孔刀
